Silicon Carbide

Silicon Carbide

Size:

0--5mm,0--10mm,50--200Mesh,or according to customer's requirement .

Packing:

In 25kg small bag , 1mt big bag or according to customer's requirement .

Introduction And Usage

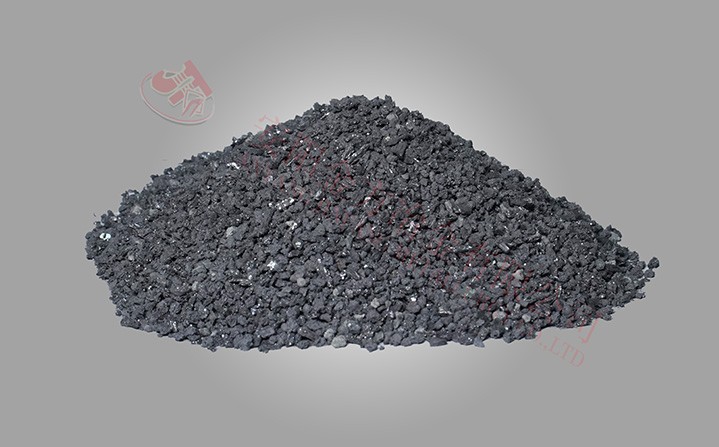

Silicon carbide is made of quartz sand, anthracite, sawdust and other raw materials by high temperature smelting in the resistance furnace, which is black and opaque. Silicon carbide is divided into black silicon carbide and green silicon carbide.

Silicon carbide can be used as deoxidizer for steelmaking and improver for cast iron structure. Silicon carbide is mainly used as auxiliary material for increasing silicon and carbon, reducing alloy consumption and deoxidizing effect in steel industry. It can improve the hardness of steel and effectively improve the quality of steel.

Chemical Composition

Grade Composition
Fe2O3 FC SiO2 Al2O3 S H2O SIZE
SIC98 ≤0.2% ≤0.2% ≤0.2% ≤0.15% ≤0.06% ≤0.5% 0-3mm/0-10mm
SIC98/96 ≤0.2% ≤0.2% ≤0.2% ≤0.15% ≤0.06% 24F/40F/60F/80F/120F/180/240F/325F
SIC88/90 ≤1.0% ≤1.0% ≤3.5% ≤1.5% ≤0.1% 0-5mm/0-10mm
SIC88/90 ≤1.0% ≤1.0% ≤3.5% ≤1.5% ≤0.1% 1-5mm/1-10mm
SIC85 ≤2.0% ≤3.0% ≤5.0% ≤3.0% ≤O.1% 0-5mm/0-10mm
SIC80 ≤3.0% ≤7% ≤8.0% ≤5.0% ≤0.15% 0-5mm/0-10mm
SIC75 ≤3.5% ≤8% ≤9% ≤6% ≤0.15% 0-5mm/0-10mm
SIC70 ≤4.0% ≤7% ≤10% ≤7% ≤0.2% 0-5mm/0-10mm
SIC65 ≤5.0% ≤12% ≤12% ≤7% ≤0.25% 0-5mm/0-10mm
SIC60 ≤5.0% ≤13% ≤13% ≤8% ≤0.25% 0-5mm/0-10mm
SIC50 ≤5.0% ≤18% ≤15% ≤8% ≤0.25% 0-5mm/0-10mm



Production Technology

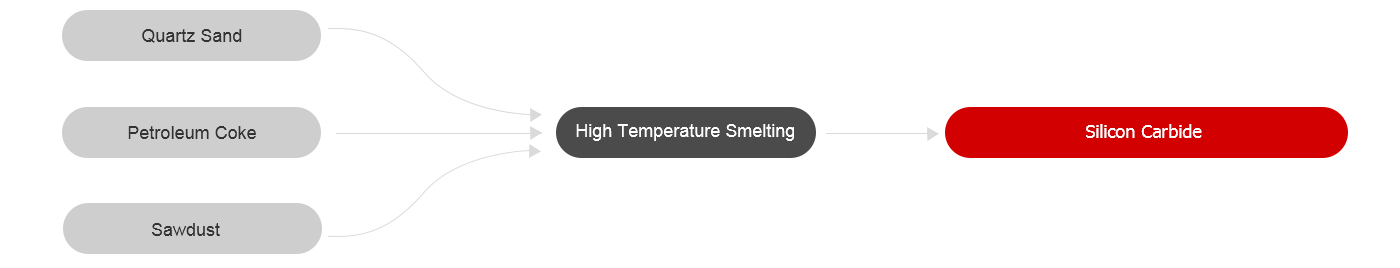

Silicon carbide (SIC) is made of quartz sand, petroleum coke (or coal coke), sawdust (salt is added when green silicon carbide is produced) and other raw materials through high temperature smelting in resistance furnace. The silicon carbide block is produced by crushing, acid-base washing, magnetic separation, screening or water separation to make products of various sizes.
